Curved Rental LED Display manufacturer from China Shenzhen LEDFUL Optoelectronics Co., Ltd.

Price:	500.0 USD
Payment Terms:	T/T
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Production Capacity: 2000sqm/month

Delivery Date: 20days

Packing: Plywood case

Brand Name: LEDFUL

LEDFUL is a professional outdoor led screen manufacturer. We provide Rental Event LED Display, Fine Pitch LED Display, Sports Perimeter LED Display.

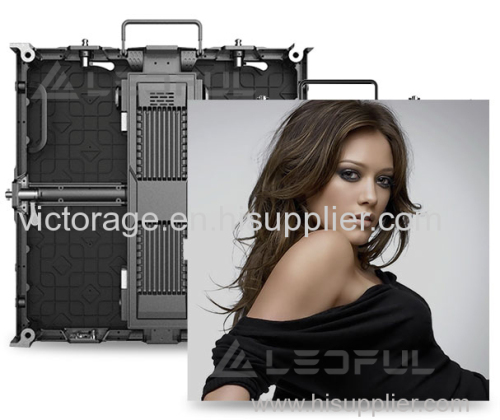

Curved Rental LED Display

LI2.6 | LI2.8 | LI2.9 | LI3.9 | LI4.8 | LI5.9 | LI6.2 LO3.9 | LO4.8 | LO5.9 | LO6.2

Front Maintenance

Curved Installation

No Light Leakage

Light and Thin

Parameter

L Series Outdoor	LO 3.9	LO 4.8	LO 5.9	LO 6.2
Pixel Pitch(mm)	3.91mm	4.81mm	5.95mm	6.25mm
Pixel Matrix Per Sq.m	65536	43264	28224	25600
Pixel Configuration	SMD1921	SMD2727	SMD3535	SMD3535
Brightness (nits)	≥4000	≥4500	≥4500	≥4000
Scan	1/16	1/13	1/7	1/10
Cabinet Resolution	128×128	104×104	84×84	80×80
Power Con. (Max / Avg)	800/250w/sq.m	780/250w/sq.m	820/260w/sq.m	800/250w/sq.m
Module Dimension	250x250mm / 0.82x0.82feet
Cabinet Dimension	500x500x80mm / 1.64x1.64x0.26feet
Cabinet Weight	8kg / 17.6Ib ( Die-casting Aluminum)
Service Access	Front / Rear
Rotation Angle	-10° and +10°
Refresh Rate (HZ)	1920
Grey Scale (bit)	16
Viewing Angle (H/V)	160 / 160
IP Rate	IP65
Input Voltage (AC)	110 / 240

L Series Indoor	LI 2.6	LI 2.8	LI 2.9	LI 3.9	LI 4.8	LI 5.9	LI 6.2
Pixel Pitch(mm)	2.604mm	2.84mm	2.976mm	3.91mm	4.81mm	5.95mm	6.25mm
Pixel Matrix Per Sq.m	147456	123904	112896	65536	43264	28224	25600
Pixel Configuration	SMD2121/SMD1515	SMD2121	SMD2121	SMD2121	SMD2121	SMD3528	SMD3528
Scan	1/32	1/22	1/28	1/16	1/13	1/7	1/10
Cabinet Resolution	192×192	176×176	168×168	128×128	104×104	84×84	80×80
Power Con. (Max/Avg)	800/250w/sq.m	780/240w/sq.m	760/220w/sq.m	700/200w/sq.m	720/200w/sq.m	740/220w/sq.m	700/200w/sq.m
Module Dimension	250x250mm / 0.82x0.82feet
Cabinet Dimension	500x500x80mm / 1.64x1.64x0.26feet
Cabinet Weight	8kg / 17.6Ib (( Die-casting Aluminum)
Service Access	Front / Rear
Rotation Angle	-10° and +10°
Brightness (nits)	≥1000
Refresh Rate (HZ)	3840
Grey Scale (bit)	16
Viewing Angle (H/V)	160 / 160
IP Rate	IP31
Input Voltage (AC)	110 / 240

* Specifications and photos are subject to change without prior notice.

Front Maintenance

The magnet LED modules can be dismantled by tools on front side.

Curved Installation

Curved with every 2.5° between -10°and 10°, which can make convex and concave.

Work with E Series

L series and E series can be installed together for various installation.

Ultra Fast Response

The response speed exceeds the response limit of the naked eyes,

while playing the high speed dynamic images in an LED Screen,

it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.

No light leakage trouble

No light leakage design with specific strips on side of cabinet and behind neighbour module.

Wide Viewing Angle

Both 160° from horizontal & vertical for the viewing angle.

Seeing from five directions, it would be still the natural and clear image in an LED display.

Faster & Easier Installation

Hanging or stacking, L series with light and thin features makes installation faster and easier.

LEDFUL is a professional outdoor led screen manufacturer. We provide Rental Event LED Display, Fine Pitch LED Display, Sports Perimeter LED Display, led stage screens for sale, led stage screen for sale and so on. Want to know about outdoor led screen installation? Please contact us.
